ProTek RC 215LPT Low Profile High Torque Metal Gear Servo (High Voltage)-PTK-215LPT

$116.95

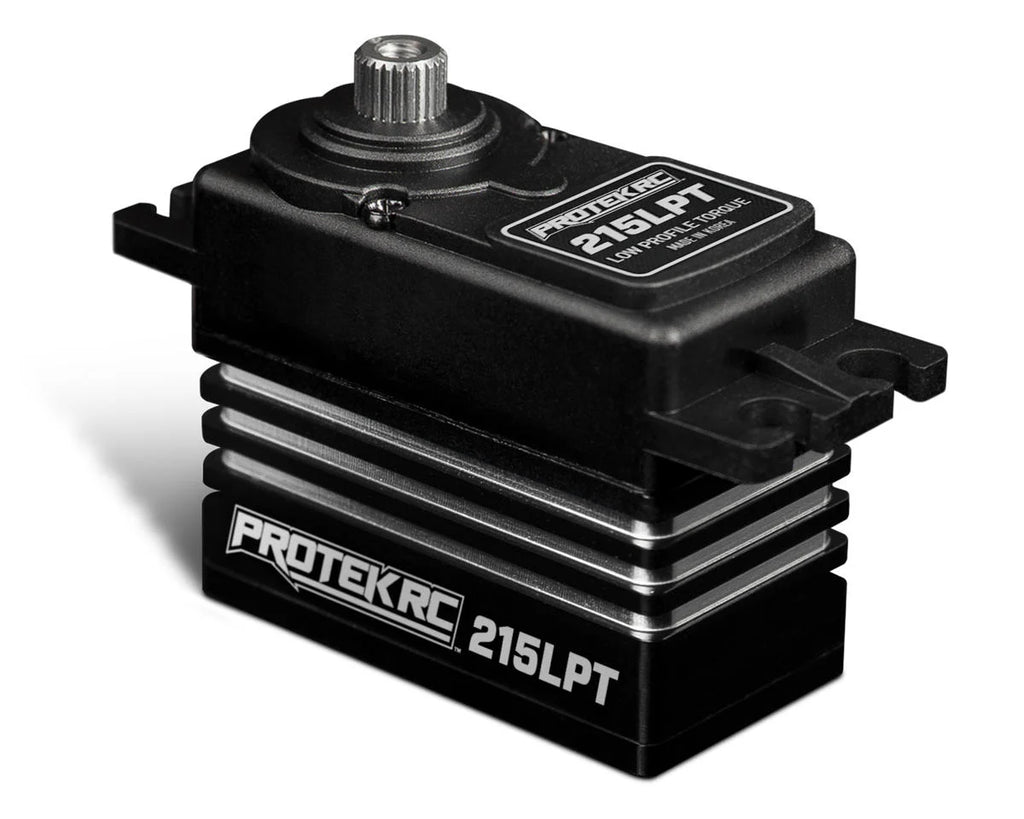

ProTek RC 215LPT Low Profile Racing Servo

Need high performance in a compact package? The ProTek R/C 215LPT Low Profile High Torque Metal Gear Servo delivers impressive speed, strong torque, and race-ready reliability in a lightweight design built for 1/10 scale vehicles. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.

About the ProTek RC 215LPT Low Profile Servo

Compact Racing Power

Refined Reliable Performance

Building on the trusted ProTek R/C 140T Low Profile Digital "High Torque" Servo, the 215LPT is a refined upgrade featuring increased torque output, faster response, and enhanced reliability. Its metal gear train, dual ball bearings, high-voltage circuitry, and aluminum center case deliver smooth, durable performance.

Low Profile Advantage

Designed for racers who need maximum performance without sacrificing space, the 215LPT combines lightweight construction with dependable power at an affordable price. Its low-profile case, heat-dissipating aluminum case, and flexible installation options make it an excellent choice for demanding 1/10 applications.

Features:

Lifetime Gear Warranty Backed by Amain Hobbies
Low-profile design saves space and reduces weight
Up to 230 oz-in of torque at 8.4V for strong steering power
Ultra-fast 0.07-second transit speed for quick response
Full metal gear train provides lasting durability
Dual ball bearings deliver smooth and precise operation
Aluminum center case helps improve heat dissipation
High-voltage circuitry supports increased performance output
Perfect choice for 1/10 off-road and on-road racing
Coreless motor delivers efficient and reliable performance

Includes:

(1) Lifetime Gear Warranty
(1) 215LPT Low Profile Metal Gear Servo
(1) Aluminum Clamping Servo Horn
Servo Hardware and Grommets

Specifications:

Application	1:10 & 1:8 Off-Road
Operating Voltage	6.0V - 7.4V
Operating Temperature	14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V	0.010/60° sec
Operating Speed @ 7.4V	0.08/60° sec
Operating Speed @ 8.4V	0.07/60° sec
Dynamic Torque @ 6.0V	185oz-in (13.3 kg-cm)
Dynamic Torque @ 7.4V	215 oz-in (15.5 kg-cm)
Dynamic Torque @ 8.4V	230oz-in (16.6 kg-cm)
Motor Type	Coreless Motor
Output Shaft	25T
Gears	Metal w/Lifetime Gear Warranty
Weight	1.75oz (49.8g)
Pulse/Frequency	1520s / 333hz
Dimensions	1.55x1.2x0.78in (39.50x30.5x20mm)
Length (Bottom to Mount)	0.77in (19.7mm)
